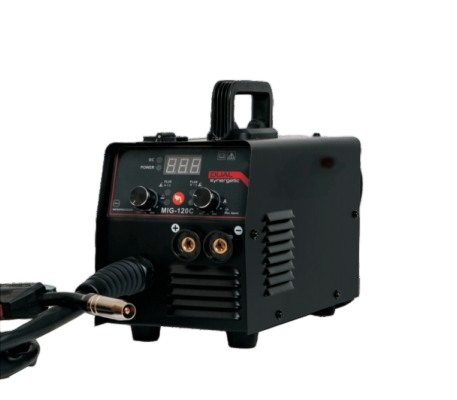

MIG-120
| Function | MIG/Lift TIG/MMA/Flux |
| Output Current (A) | 30~120A @ MIG 10~110A @ MMA 10~110A @ TIG |
| Input Voltage (V) | 220V +/- 10% |
| max. Duty Cycle (%) | 30% - 120A @ MIG 25°C 40% - 110A @ MMA 25°C 40% - 110A @ TIG 25°C |
| NO-Load Voltage (V) | 55 |
| Power Factor | 0.93 |
| Protection Grade of Housing | IP23 |
| Electrode available | 2.0 / 2.5 / 3.2 mm |
| Wire diameter (mm) | 0.8 / 1.0 mm |
| Power Capacity (KVA) | 4.8 KVA |
| Dimension (cm) | 43 x 19.5 x 36.5 |
| Gross Weight (Kg) | 7.6 Kg |
