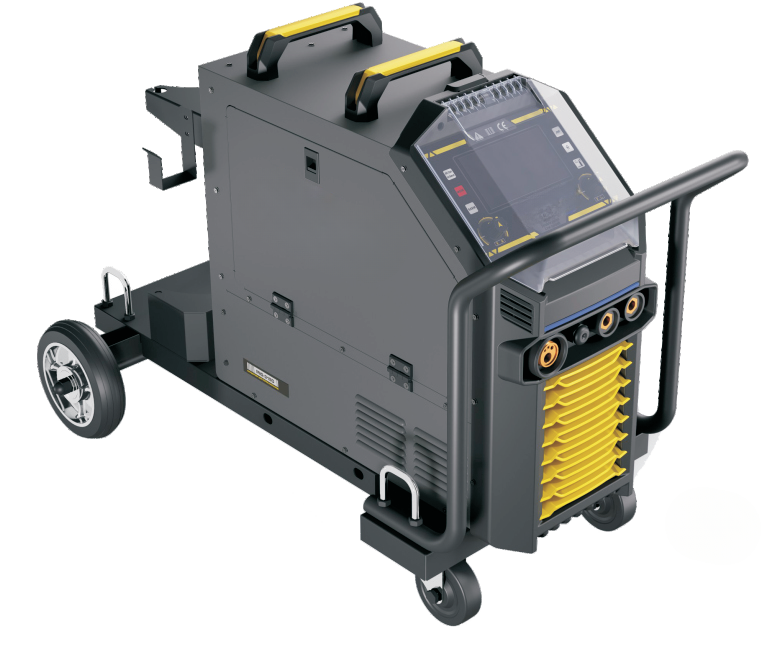

MIG-315D/400D
| Model | MIG-315D | MIG-400D | ||||
| Power supply voltage(V) | ||||||
| Power frequency(Hz) | 3~400 | 3~400 | ||||
| Input voltage(V) | 50/60 | 50/60 | ||||
| MIG | TIG | MMA | MIG | TIG | MMA | |
| Effective current(A) | 14.2 | 10.8 | 11.7 | 19.0 | 14.9 | 19.8 |
| Rated input current(A) | 22.5 | 17.0 | 18.5 | 24.5 | 19.3 | 25.5 |
| Rated input power(KW) | 15.6 | 11.8 | 12.8 | 17.0 | 13.4 | 17.6 |
| Duty cycle 40℃ 10min | 40%315A 60%260A 100%200A | 40%300A 60%245A 100%190A | 40%250A 60%205A 100%160A | 60%400A 100%310A | ||
| Welding current range(A) | 30-315 | 10-300 | 10-250 | 30-400 | 10-400 | 10-400 |
| Welding voltage range(V) | 15.5-29.8 | 10.4-22 | 20.4-30 | 15.5-34 | 10.4-26 | 20.4-36 |
| Wire feeding speed(m/min) | 1.5-18 | - | 1.5-18 | |||
| No load voltage(V) | 78 | 78 | 78 | 78 | 78 | 78 |
| Efficiency(%) | 80.0 | 80.0 | ||||
| Power factor | 0.68 | 0.90 | ||||
| Insulation class | E | E | ||||
| Protection class | IP21S | IP21S | ||||
| Cooling | AF | AF | ||||
| Net weight(kg) | 53 | 55 | ||||
| Dimensions(mm) | 930*460*940 | 930*460*940 | ||||
