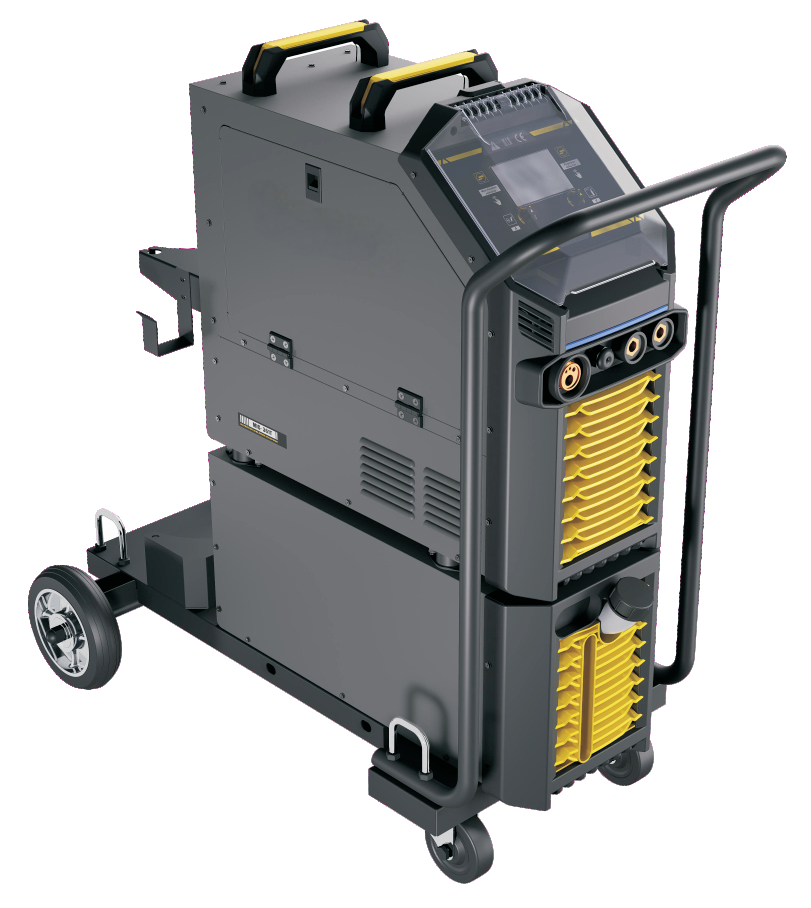

MIG-361T
| Model | MIG-361T | ||
| Power supply voltage(V) | |||
| Power frequency(Hz) | 3~380 | ||
| Input voltage(V) | 50/60 | ||
| MIG | TIG | MMA | |
| Effective current(A) | 15.9 | 12.5 | 17.0 |
| Rated input current(A) | 20.5 | 16.2 | 22.0 |
| Rated input power(KW) | 14.1 | 11.2 | 15.2 |
| Duty cycle 40℃ 10min | 60%300A 100%235A | ||
| Welding current range(A) | 20-300 | 10-300 | 10-300 |
| Welding voltage range(V) | 15-29 | 10.4-22 | 20.4-32 |
| Wire feeding speed(m/min) | 1.5-24 | ||
| No load voltage(V) | 73.5 | 14.5(VRD) | 14.5(VRD) |
| Efficiency(%) | 90.9 | ||
| Power factor | 0.7 | ||
| Insulation class | F | ||
| Protection class | IP21S | ||
| Cooling | AF | ||
| Net weight(kg) | 50 | ||
| Dimensions(mm) | 620*290*580 | ||
