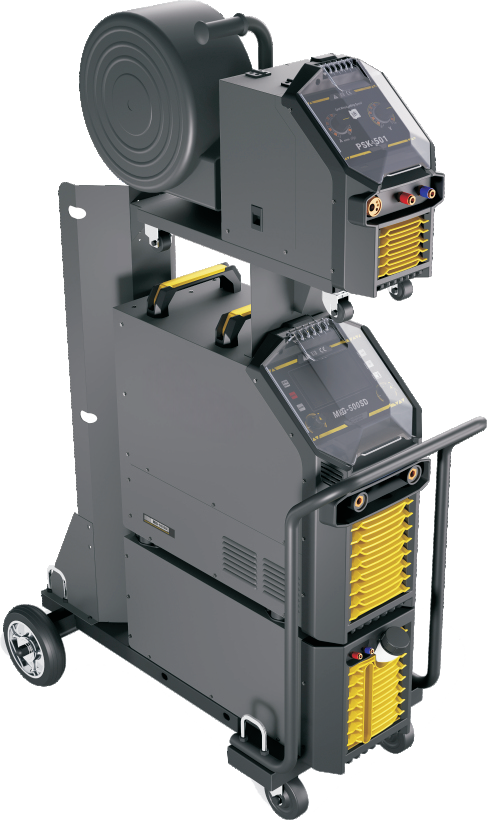

MIG-350SD/500SD
| Model | MIG-350SD | MIG-500SD | ||||
| Power supply voltage(V) | ||||||
| Power frequency(Hz) | 3~400 | 3~400 | ||||
| Input voltage(V) | 50/60 | 50/60 | ||||
| MIG | TIG | MMA | MIG | TIG | MMA | |
| Effective current(A) | 19.2 | 15.3 | 20.8 | 28.1 | 22.9 | 29.0 |
| Rated input current(A) | 24.8 | 19.8 | 26.8 | 37.0 | 30.0 | 38.5 |
| Rated input power(KW) | 17.2 | 25.5 | ||||
| Duty cycle 40℃ 10min | 60%350A 100%275A | 60%500A 100%390A | ||||
| Welding current range(A) | 30-350 | 10-350 | 10-350 | 30-500 | 10-400 | 10-400 |
| Welding voltage range(V) | 15.5-31.5 | 10.4-22 | 20.4-34 | 15.5-39 | 10.4-30 | 20.4-40 |
| Wire feeding speed(m/min) | 1.5-24 | 1.5-24 | ||||
| No load voltage(V) | 78.0 | 78.0 | ||||
| Efficiency(%) | 80.00 | 80.00 | ||||
| Power factor | 0.72 | 0.85 | ||||
| Insulation class | E | E | ||||
| Protection class | IP21S | IP21S | ||||
| Cooling | AF | AF | ||||
| Net weight(kg) | 63 | 68 | ||||
| Dimensions(mm) | 710*270*490 | 710*270*490 | ||||
