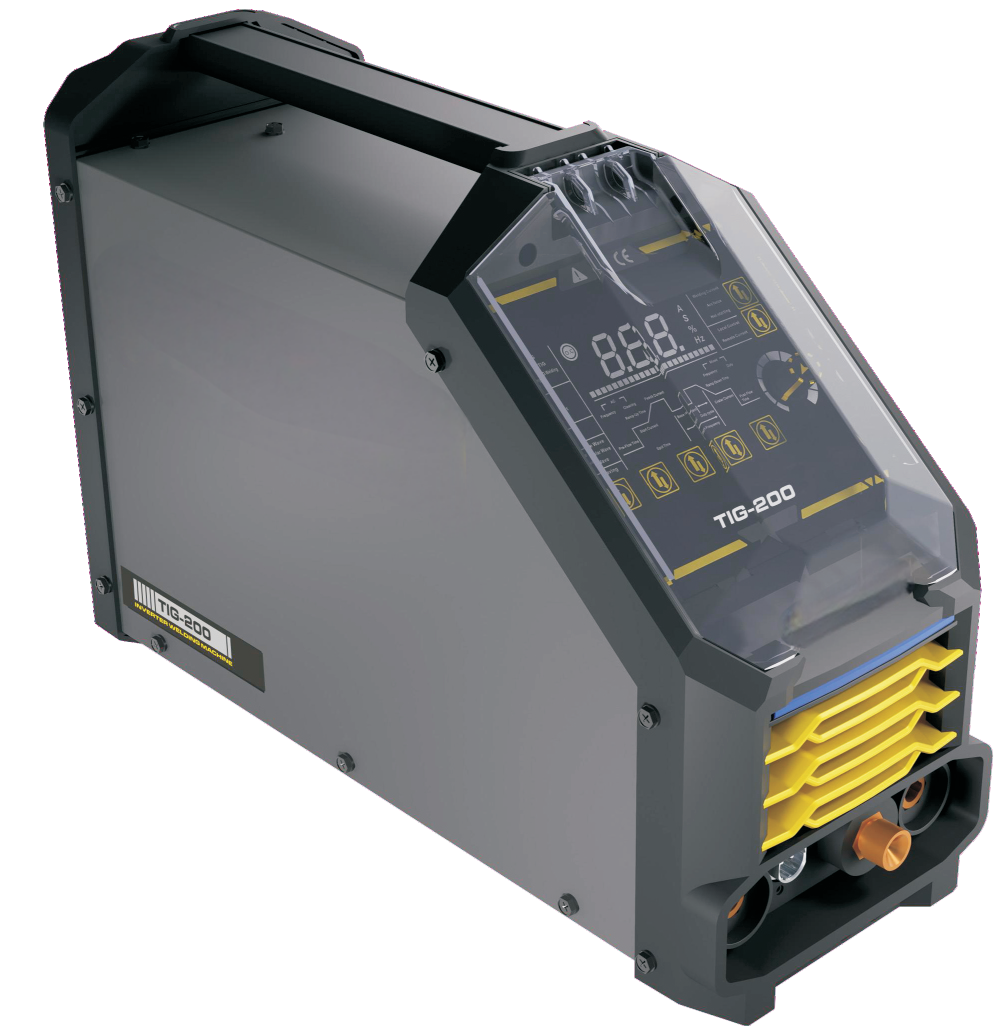

TIG-200
| Model | TIG-200 | |
| Power supply voltage(V) | 1~230 | |
| Power frequency(Hz) | 50/60 | |
| 1~230 | ||
| Effective current(A) | TIG | MMA |
| Rated input current(A) | 15.1 | 18.4 |
| Rated input power(KW) | 19.5 | 29.1 |
| 4.5 | 6.7 | |
| Duty cycle 40℃ 10min | 60%200A 100%155A | 40%200A 60%165A 100%130A |
| Welding current range(A) | 3-200 | 10-200 |
| No load voltage(V) | 67 | 67 |
| Efficiency(%) | 85.3 | |
| Power factor | 0.99 | |
| Insulation class | F | |
| Protection class | IP21S | |
| Cooling | AF | |
| Net weight(kg) | 10.5 | |
| Dimensions(mm) | 400*155*280 | |
