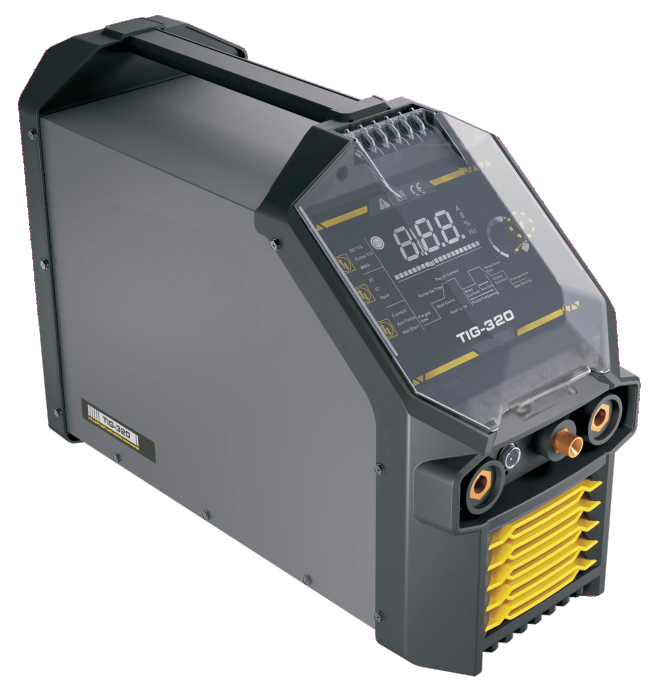

TIG320
| Model | TIG320 | |||||||
| Power supply voltage(V) | 3~380 | |||||||
| Power frequency(Hz) | 50/60 | |||||||
| Input voltage(V) | 1~230 | 3~230 | 3~400 | 3~600 | ||||
| TIG | MMA | TIG | MMA | TIG | MMA | TIG | MMA | |
| Effective current(A) | 21.1 | 31.4 | 17.7 | 24.7 | 14.3 | 19.1 | 10.9 | 14.1 |
| Rated input current(A) | 27.3 | 40.5 | 22.9 | 31.9 | 18.3 | 24.6 | 14.1 | 18.2 |
| Rated input power(KW) | 6.2 | 9.2 | 9.1 | 12.7 | 12.8 | 17.1 | 14.5 | 18.8 |
| Duty cycle 40℃ 10min | 60%250A 100%195A | 60%320A 100%250A | 40%400A 100%310A | 60%400A 100%310A | ||||
| Welding current range(A) | 5-250 | 10-250 | 5-320 | 10-320 | 5-400 | 10-400 | 5-400 | 10-400 |
| No load voltage(V) | 75 | 10(VRD) | 75 | 10(VRD) | 75 | 10(VRD) | 102 | 10(VRD) |
| Efficiency(%) | 88.3 | |||||||
| Power factor | 0.99 | 0.96 | 0.96 | 0.87 | ||||
| Insulation class | F | |||||||
| Protection class | IP21S | |||||||
| Cooling | AF | |||||||
| Net weight(kg) | 22 | |||||||
| Dimensions(mm) | 530*225*370 | |||||||
