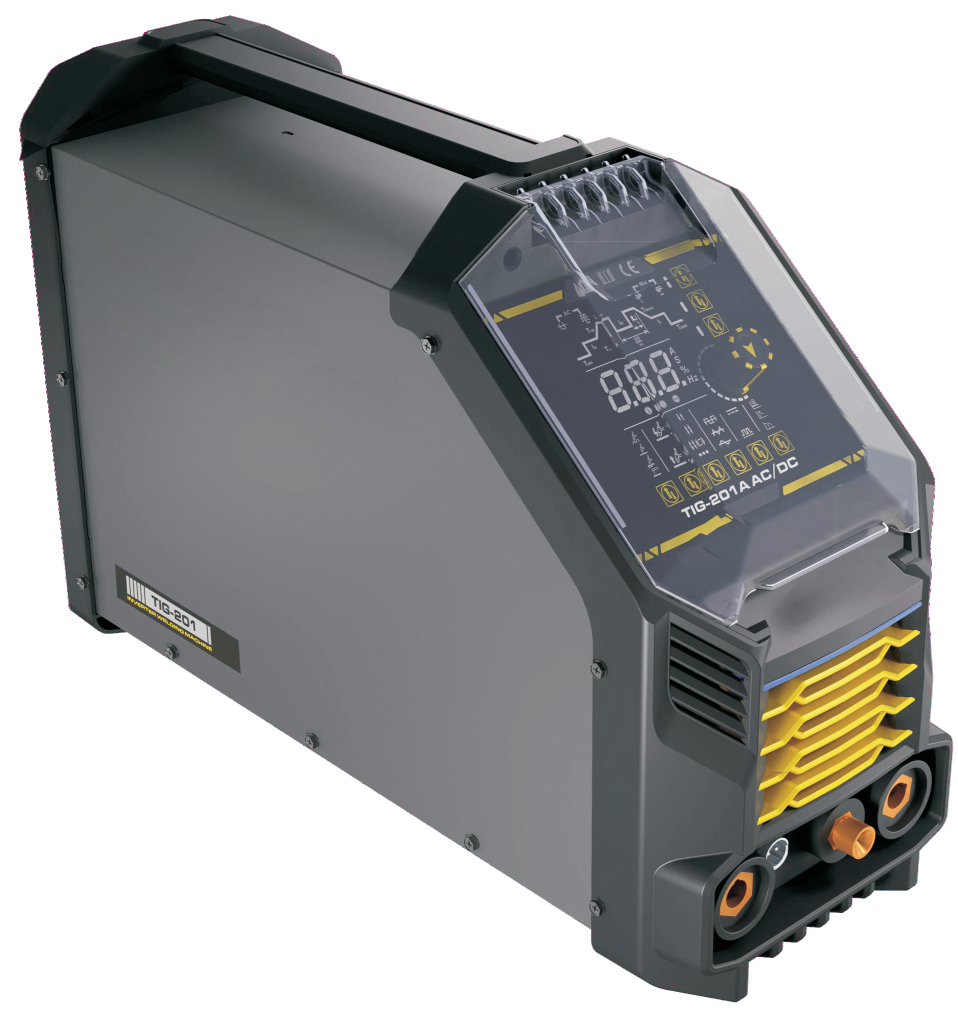

TIG-201A AC/DC
| Model | TIG-201AAC/DC | |||
| Power supply voltage(V) | 1~230 | |||
| Power frequency(Hz) | 50/60 | |||
| Input voltage(V) | 1~230 | |||
| TIG | MMA | |||
| AC | DC | AC | DC | |
| Effective current(A) | 12.7 | 13.2 | 17.0 | 17.9 |
| Rated input current(A) | 20.1 | 20.8 | 28.7 | 30.2 |
| Rated input power(KW) | 4.6 | 4.8 | 6.6 | 6.9 |
| Duty cycle 40℃ 10min | 40%200A 100%155A | 35%200A 60%155A 100%120A | ||
| Welding current range(A) | 5-200 | 3-200 | 10-200 | |
| No load voltage(V) | 73 | 10(VRD) | ||
| Efficiency(%) | 86 | |||
| Power factor | 0.99 | |||
| Insulation class | F | |||
| Protection class | IP21S | |||
| Cooling | AF | |||
| Net weight(kg) | 13.5 | |||
| Dimensions(mm) | 500*195*340 | |||
