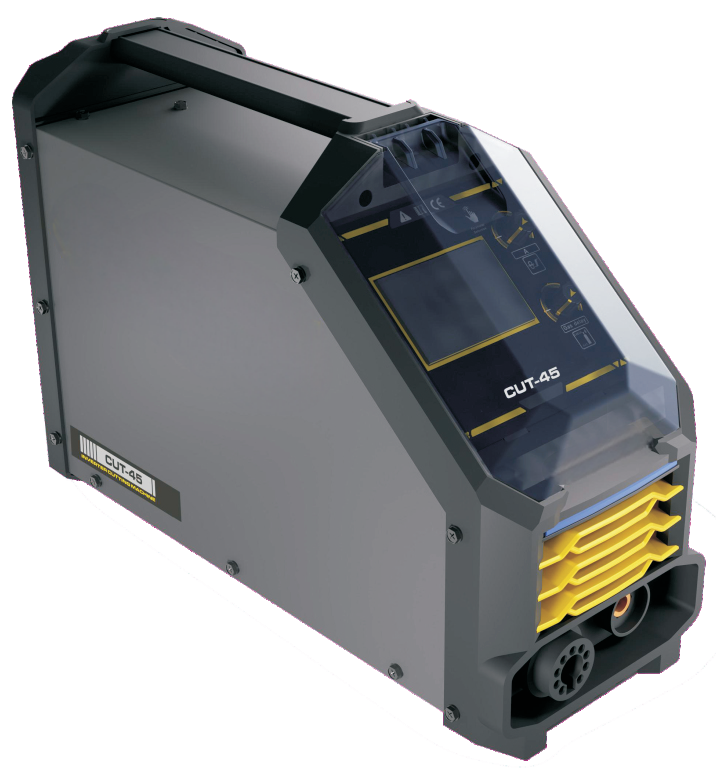

CUT-45
| Model | CUT-45 |
| Power supply voltage(V) | 1~230 |
| Power frequency(Hz) | 50/60 |
| Input voltage(V) | 1~230 |
| Effective current(A) | 14.4 |
| Rated input current(A) | 22.7 |
| Rated input power(KW) | 5.1 |
| Duty cyce 40℃ 10min | 40%45A 60%36A 100%28A |
| No load voltage(V) | 377 |
| Cutting current(A) | 20-45 |
| Efficiency(%) | 86 |
| Power factor | 0.99 |
| Severance cut for carbon steel(mm) | ≤25 |
| Production cut(mm) Carbon steel Stainless steel Aluminum Copper | ≤16 ≤16 ≤16 ≤16 |
| Insulation class | F |
| Protection class | IP21S |
| Cooling | AF |
| Net weight(kg) | 7.7 |
| Dimensions(mm) | 400*155*280 |
