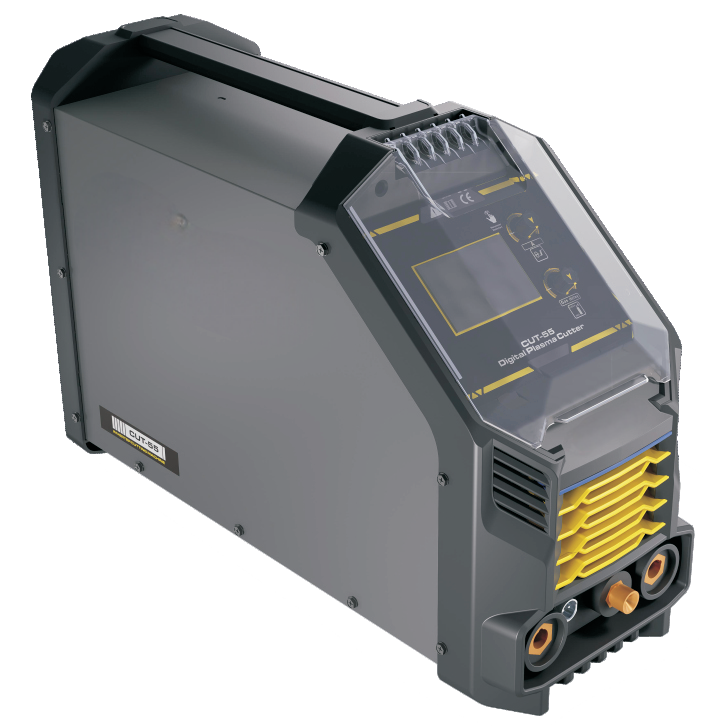

CUT-55
| Model | CUT-55 |
| Power supply voltage(V) | 1~230 |
| Powerfrequency(Hz) | 50/60 |
| Effective current(A) | 48 |
| Rated input current(A) | 48 |
| Rated input power(KW) | 11 |
| Duty cyce 40℃ 10min | 100% |
| No load voltage(V) | 348 |
| Cutting current(A) | 20-60 |
| Efficiency(%) | 88.7 |
| Power factor | 0.65 |
| Severance cut for carbon steel(mm) | ≤35 |
| Production cut(mm) Carbon steel Stainless steel Aluminum Copper | ≤25 ≤25 ≤20 ≤14 |
| Insulation class | F |
| Protection class | IP21S |
| Cooling | AF |
| Net weight(kg) | 8.5 |
| Dimensions(mm) | 530*225*370 |
