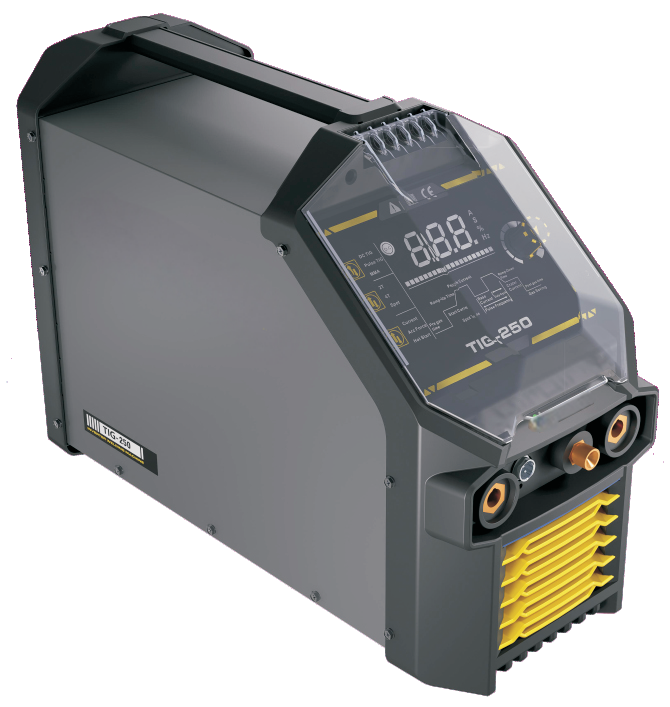

TIG-250
| Model | TIG-250 | |
| Power supply voltage(V) | 3~380 | |
| Power frequency(Hz) | 50/60 | |
| Effective current(A) | TIG | MMA |
| Rated input current(A) | 9.9 | 14.1 |
| Rated input power(KW) | 12.8 | 18.2 |
| 8.9 | 12.6 | |
| Duty cycle 40℃ 10min | 60%250A 100%195A | |
| Welding current range(A) | 5-250 | 10-250 |
| No load voltage(V) | 73.5 | 20.5 |
| Efficiency(%) | 89.5 | |
| Power factor | 0.68 | |
| Insulation class | F | |
| Protection class | IP21S | |
| Cooling | AF | |
| Net weight(kg) | 15 | |
| Dimensions(mm) | 530*225*370 | |
